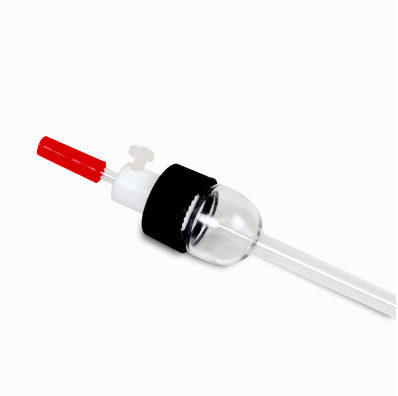

5 mm OD Reaction Monitoring System NMR Tube

Designed to monitor reactions from start to finish, the Wilmad-LabGlass Reaction Monitoring System is a two-chamber borosilicate glass NMR tube that allows for in-tube mixing. The system features an inner chamber with a Teflon® tip that when secured creates a positive seal separating solutions until the user is ready to mix. Allows for acquisition of both pre-mix and post-mix spectra In situ mixing of solutions provides a clear ‘before and after’ reaction picture Enables specific reaction endpoint determination Eliminates variables and reduces risk of contamination during experiments May allow for capture of initial kinetic data points in benchtop spectrometers where the upper portion of the sample tube is accessible Permits researchers to run reaction experiments without specialized instruments or equipment Includes an extra black phenolic cap with a white rubber liner for the outer tube allowing for easy sample storage Made from Type 1, Class A Borosilicate Glass NOTE: Not for use in spinning experiments. The black phenolic cap used during mixing does not have a liner and should always be kept in a vertical position.

Details

INSTRUCTIONS: can be downloaded HERE

WG-RMS-7 Specifications

• Mhz Rating:600
• Outer Tube OD:5mm
• Inner Tube OD:3mm
• Thread Size:15mm OD
• Tube Length:7 inches
• Overall Length:8.75″ collapsed, 15.75″ extended

Application Notes

INSTRUCTIONS: can be downloaded HERE
