Tip-Off Manifold for Constricted Tube

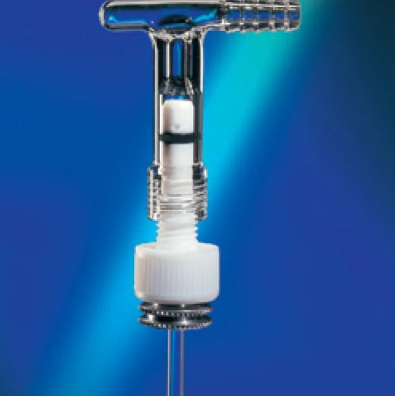

The Wilmad-LabGlass tip-off manifold connects to an NMR tube by a threaded aluminum bushing which is isolated from the vacuum by a PTFE high-vacuum rotary valve with Viton O-rings. Rotating the valve will open and close the tube to the vacuum line. The manifold port is highly resistant to chemicals.

Details

3 mm OD Tubes3 mm OD Tubes

Specifications

• Description:Complete Tip-off Manifold

Application Notes

Due to the nature of glass, Extreme Caution should be exercised when using at elevated or reduced pressures since a tiny scratch on the glass surface would significantly lower the tensile strength. Adequate safety shielding should always be used when working in these conditions.
