Economy Tube Washers/Cleaners for NMR and EPR Sample Tubes

판매가격 206,500 원
카탈로그 NO. FAMILY-3646
제조사/원산지 Wilmad-LabGlass /
제품사양 정보

카탈로그 다운로드

SP Wilmad-LabGlass NMR Consumable and Accessories.pdf
다운로드

Order Information

Catalog No. Description 브랜드 단위 소비자가 추가
Catalog No.WG-1207-5 DescriptionTube Washer, 5 mm Tubes 브랜드Wilmad 단위1 EA 소비자가206,500원
Catalog No.WG-1207-5-8 DescriptionTube Washer,5 mm, 8" L Tubes 브랜드Wilmad 단위1 EA 소비자가225,500원
Catalog No.WG-1207-J10 DescriptionTube Washer w/ 24/40 Joint, 10 mm Tubes 브랜드Wilmad 단위1 EA 소비자가275,300원
Catalog No.WG-1207-J5 DescriptionTube Washer w/ 24/40 Joint, 8 mm Tubes 브랜드Wilmad 단위1 EA 소비자가240,900원
Catalog No.WG-1207-J5-8 DescriptionTube Washer w/ 24/40 Joint, 5 mm Tubes, 8" L 브랜드Wilmad 단위1 EA 소비자가275,300원

선택한 항목

Catalog No. Description 소비자가
총 합계 금액 0원
구매하기
장바구니
찜하기

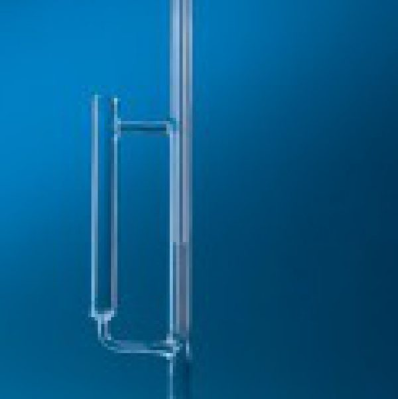

Economy Tube Washers/Cleaners for NMR and EPR Sample Tubes

After fitting the washer to a filter flask, an inverted sample tube is inserted into the washer and solvent is introduced into the reservoir using a series of wash bottles. You can perform numerous wash steps and finish by pulling air through the tube to complete the procedure. Filter flasks are ordered separately. The single tube washers (WG-1207-series) require flasks with vacuum side arms; LG-7800-102,104 or 106.



WG-1207-5 Specifications

  • Fits Tubes with OD (mm):5*
  • For Tube Length (in):7
  • Washer Connection:Plain
  • “B” Diameter:10mm


WG-1207-5-8 Specifications

  • Fits Tubes with OD (mm):5*
  • For Tube Length (in):8
  • Washer Connection:Plain
  • “B” Diameter:10mm


WG-1207-J10 Specifications

  • Fits Tubes with OD (mm):10
  • For Tube Length (in):7
  • Washer Connection: 24/40 Inner Joint
  • “B” Diameter:14mm


WG-1207-J5 Specifications

  • Fits Tubes with OD (mm):5 mm Thin Wall
  • For Tube Length (in):7
  • Washer Connection: 24/40 Inner Joint
  • “B” Diameter:10mm


WG-1207-J5-8 Specifications

  • Fits Tubes with OD (mm):5*
  • For Tube Length (in):8
  • Washer Connection: 24/40 Inner Joint
  • “B” Diameter:10mm
