Variable Temperature TE102 Aqueous Cells

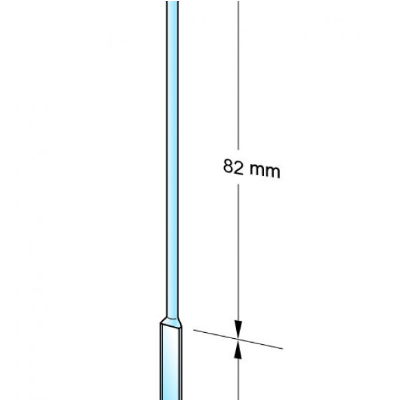

Small Volume TE102 Variable Temperature Aqueous Cell The WG-808 VT Aqueous Cell works with most common VT Dewar Inserts, including WG-821(-X) and WG-848. Flat cells confine the sample to a 0.5 mm space.Wilmad uses “-Q” to designate quartzware using Suprasil® in the critical portions of the cell. NOTE: Cell product numbers that include the letter “S” indicate that optically polished flat windows are joined to the polished wall ends via a special thermal fusion technique to form an ultra high precision bore flat cell. The two windows are parallel to each other within several visible light wave numbers. These items are recommended for EPR experiments that requires critical coupling

WG-808-Q Specifications

• Plate Material:Suprasil®
• Flat Section Wdth/Lngth (mm):4.75 / 47
• Upper Tube ID X OD (mm):3 x 4
• Sample Volume (micro liters):100
• For:All TE 102 or TE 011
