Small Nitrogen Dewar Flasks for Others

These Dewar Flasks provide a convenient alternative to VT systems for studies at 77 K, and are silvered around the reservoir. 50 mL flasks last 15 minutes after a filling. The offset versions (WG-819) are designed for cavities that have limited space between the reservoir and the drive shaft for iris.

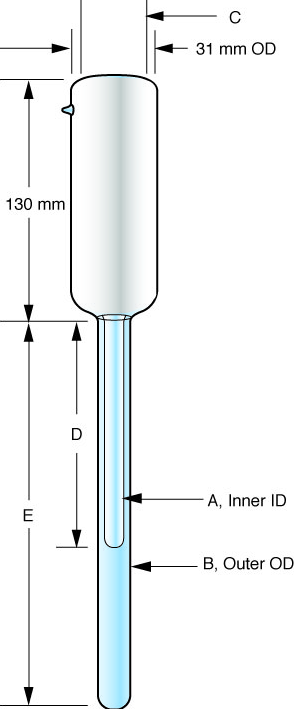

Specifications

• Reservoir Style :Symmetric
• Dim A (mm):4.9
• Dim B (mm):11.4
• Dim C (mm):22
• Dim D (mm):86
• Dim E (mm):162
