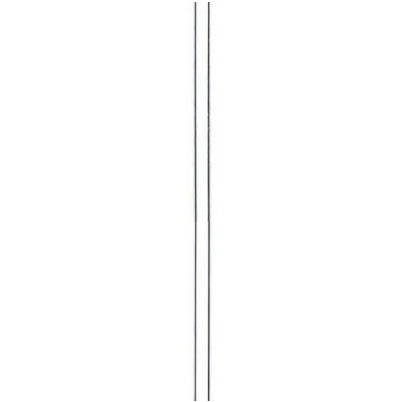

FEP Tube Liners for Corrosive Samples and 29Si NMR
For investigations where chemical compounds such as hydrofluoric acid, ammonium bifluoride and concentrated hydroxide solutions are present our tube liners provide a contamination-free environment. Tube liners have a round bottom and are manufactured from FEP (fluorinated ethylene polypropylene copolymer). Thin wall construction minimizes filling-factor losses. Liners are not rigid, but will straighten upon insertion into the sample tube. A PTFE plug is included with each liner.Note: Not recommended for elevated temperature studies.
6003 Specifications
- Compatibility:Wilmad 3 mm OD 7″ Thin Wall Precision Tube
- OD (mm):1.95
- ID (mm) :1.50
- Length (in.):8
- Approximate Volume of 10mm Height (µL):30
6005 Specifications
- Compatibility:ONLY – Wilmad 5 mm OD 7″ Thin Wall Precision Tube
- OD (mm):3.65
- ID (mm) :3.15
- Length (in.):8
- Approximate Volume of 10mm Height (µL):80
6010 Specifications
- Compatibility:Wilmad 10 mm OD 7″ Thin Wall Precision Tube
- OD (mm):8.30
- ID (mm) :7.50
- Length (in.):8
- Approximate Volume of 10mm Height (µL):440
6012 Specifications
- Compatibility:Wilmad 12 mm OD 7″ Medium Wall Precision Tube
- OD (mm):9.35
- ID (mm) :6.35
- Length (in.):8
- Approximate Volume of 10mm Height (µL):550
6015 Specifications
- Compatibility:Wilmad 15 mm OD 7″ Medium Wall Precision Tube
- OD (mm):12.45
- ID (mm) :11.00
- Length (in.):8
- Approximate Volume of 10mm Height (µL):1000
6005-8 Specifications
- Compatibility:Wilmad 5 mm OD 8″ Thin Wall Precision Tube
- OD (mm):3.65
- ID (mm) :3.15
- Length (in.):9
- Approximate Volume of 10mm Height (µL):80
