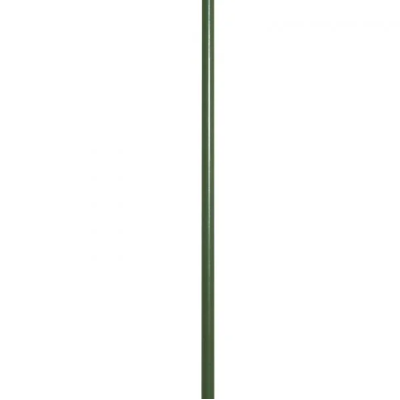

5 mm Thin Wall Precision NMR Tube, 7″ L, PTFE Coated

판매가격 121,800 원
카탈로그 NO. WG-1210-7
제조사/원산지 Wilmad-LabGlass /
제품사양 정보 OD (mm) :4.96 ± 0.03
ID (mm) :4.060 ± 0.008
Length (inch) :7
Coating Material :PTFE

카탈로그 다운로드

SP Wilmad-LabGlass NMR Consumable and Accessories.pdf
다운로드

Order Information

Catalog No. Description 브랜드 단위 소비자가 추가
Catalog No.G-1210-7 Description5 mm Thin Wall Precision NMR Tube, 7″ L, PTFE Coated 브랜드Wilmad 단위EA 1 소비자가124,300원

선택한 항목

Catalog No. Description 소비자가
총 합계 금액 0원
구매하기
장바구니
찜하기


PTFE Coated NMR Tubes

Wilmad’s PTFE coated NMR tube has excellent mechanical strength that can survive a 6 foot free drop at any angle. The PTFE coating also yields zero background in proton spectrum. These two features make it ideal in food and pharmaceutical studies where glass coating is a must to protect the sample.  PTFE coating carries max working temperatures up to 180 °C (360 °F) and its smooth surface makes it food safe and very easy to wash.  The inner diameter is precision bored with 8 micron tolerance which guarantees a sample height reproducibility within 1% at a given sample volume. Below are the recommended volumes for most popular probes: Probe Type Recommended Sample Volume Varian 5 mm Rf coil 16 mm Length 655 µL Bruker 5 mm Rf coil 12 mm Length 500 µL Bruker 5 mm Rf coil 18 mm Length 735 µL



Specifications

  • OD (mm) :4.96 ± 0.03
  • ID (mm) :4.060 ± 0.008
  • Length (inch) :7
  • Coating Material :PTFE
